Product description:
INQUIRY

MH- SENSOR explore proof ultrasonic level sensors have beautiful appearance, stability performance; explore proof design and good measurement function. Isolated power supply by industrial instruments, all of the output, input lines with lightning protection, over voltage, over current protection circuit functions. Transmitter function of small, weak energy, high sensitivity, bearing small; a complete sensor system can accurately complete the objects in different environments continuous non-contact measurement; small blind, high accuracy, wide application, send and receive integrated, which can accurately receive weak echo signals to ensure the accuracy and reliability. MH- explore proof Ultrasonic Level Sensor is a safe, clean, high precision, long life, stable and reliable, easy installation and maintenance ease of use easy to read and so on.

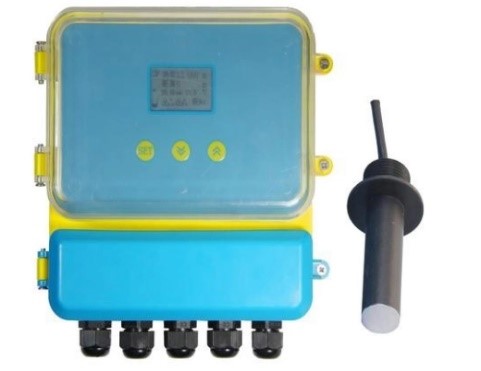

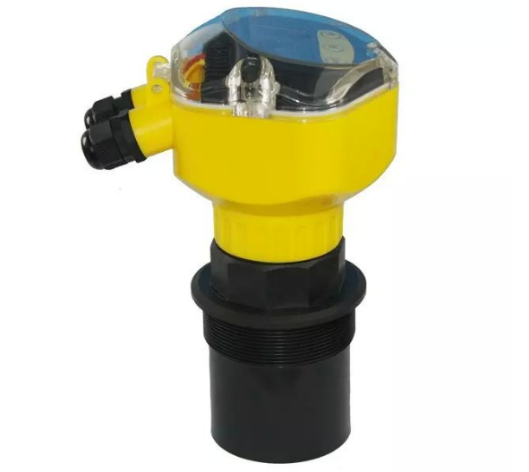

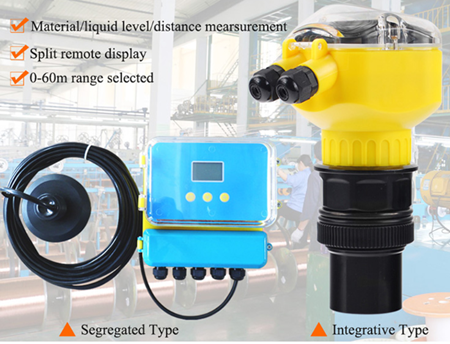

Functions	Integrative Type	Segregated Type
Level Range:	Economic Type: 5M, 10M, 12M. Standard Type: 5M, 10M, 15M, 20M, 30M, 50M.	5M, 10M, 15M, 20M,30M, 50M, 70M.
Accuracy:	0.25%-0.5%F.S	0.25%-0.5%F.S
Blind Zone:	0.2-0.6m	0.2-0.6m
Working Pressure:	2 Bar (Explore Proof Type is 5 Bar)	2 Bar (Explore Proof Type is 5 Bar)
Resolution:	3mm or 0.1%F.S (Max of them)	3mm or 0.1%F.S (Max of them)
Display:	English language display:Level measurement, distance measurement, transmission value, ambient temperature, echo state, alarm display, algorithm selection.	English language display:Level measurement, distance measurement, transmission value, ambient temperature, echo state, alarm display, algorithm selection.
Analog Output:	4~20mA/750Ω load resistance (2 wire) 4~20mA/250Ω load resistance (4 wire) 1~5 V (3 wires) 0~5 V (3 wires) 0~10 V (3 wires)	4~20mA/750Ω load resistance 1~5 V (3 wires) 0~5 V (3 wires) 0~10 V (3 wires)
Relay /Alarm Output:	AC 250V/ 8A; DC 30V/ 5A; State programmable (optional for 4 wire)	AC 250V/ 8A; DC 30V/ 5A; State programmable (optional)
Power Supply:	24VDC 120mA 12VDC (available to offer power by motor, battery or solar power and so on.)	220VAC+15% 50Hz 24VDC 120mA 12VDC (available to offer power by motor, battery or solar power and so on.)
Environment Temperature:	Meter: -20~+60℃ Sensor: -20~+80℃	Meter: -20~+60℃ Sensor: -20~+80℃
Communication:	RS485 Communications (optional)	RS485 Communications (optional)
Explore Proof:	Ex(ia)ⅡCT6	Ex(ia)ⅡCT6
Water Proof:	Economic Type: IP65 Standard Type: IP66	Meter: IP65 Sensor: IP68

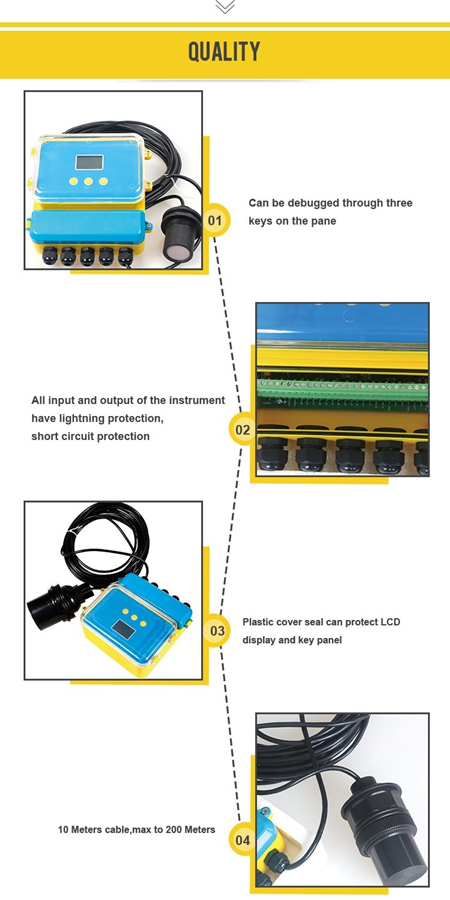

Cable of Sensor:	Null	Standard: 10 Meters, Max to 200 Meters
Sensor Installation:	By level range and model code	By level range and model code
Store Request:	Temperature: -20~+80℃ Pressure: atmospheric pressure Humidity: ≤90%RH Others:Non-corrosive gases (optional corrosion probe) or steam, no vibration.	Temperature: -20~+80℃ Pressure: atmospheric pressure Humidity: ≤90%RH Others:Non-corrosive gases (optional corrosion probe) or steam, no vibration.
