Flowmeter

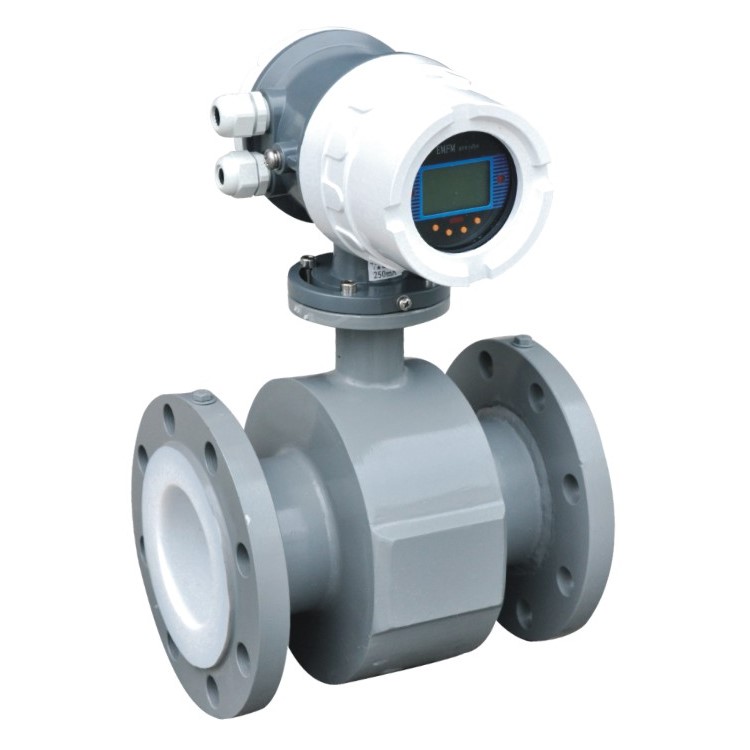

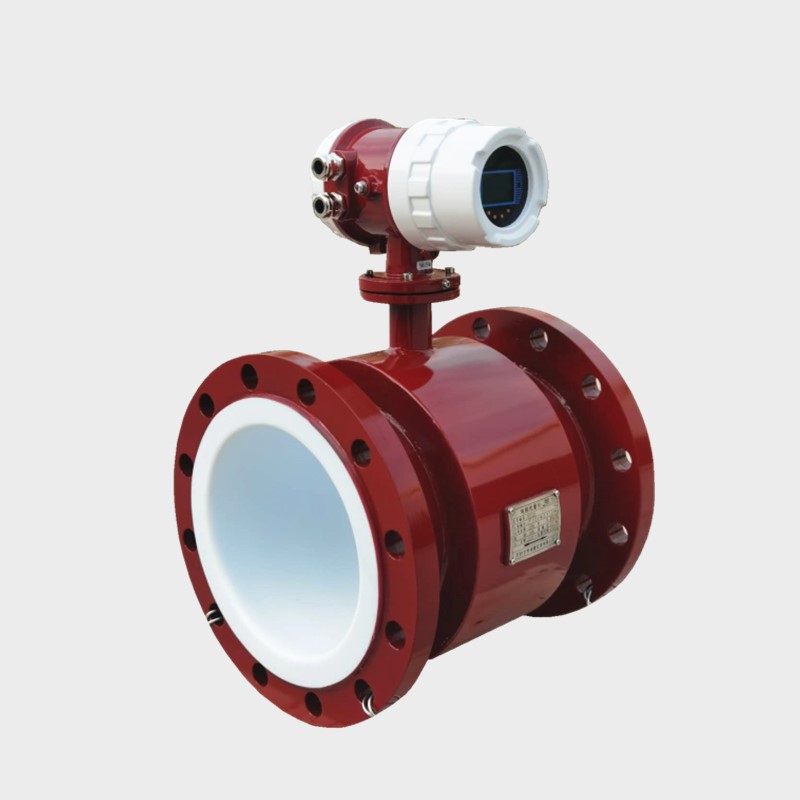

Integrated electromagnetic flowmeter

Simple sensor structure
Measurable corrosion resistance, resistance to dirty and turbid suspension liquid-solid two phase flow of traffic
Volumetric flow measurement
No mechanical inertia, sensitive reaction
Product description: Electromagnetic flowmeter is a flow meter based on Faraday's law of electromagnetic induction. It is used to measure conductive liquid and slurry in closed pipe Volume flow of liquid. It is widely
INQUIRY

Products Description

Specially used to measure conductive and non-conductive liquids mediums;
Providing OEM customized services and high-quality products;
Providing technical support, choosing flow meters according to different working conditions;

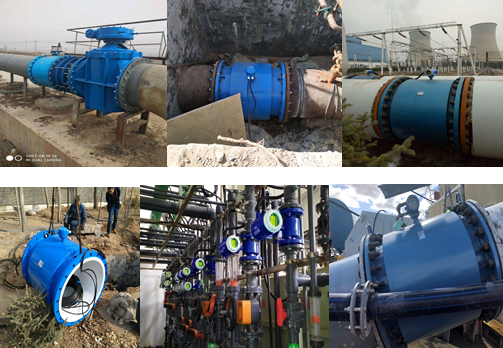

Electromagnetic flow meter is used in a variety of industries, water treatment, chemical, food , agriculture, water supply and drainage etc.

Normal diameter	DN10-DN3000mm
Accuracy	±0.5%

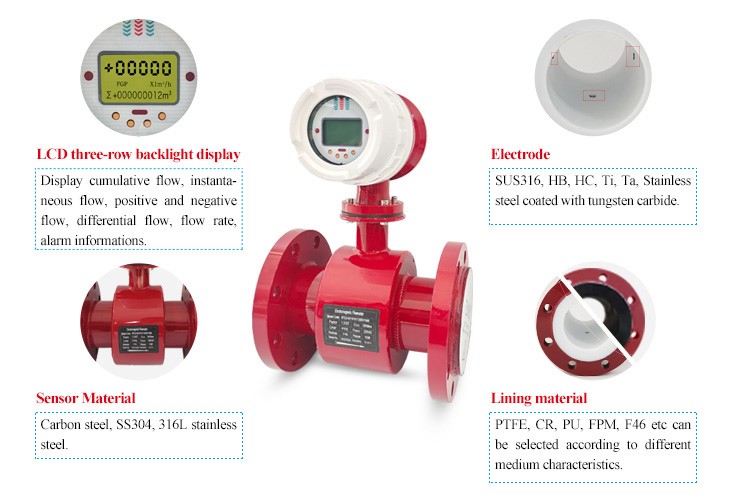

Liner Material	PTEF, PFA, F46, CR, PU, FPM
Electrode material	316L, HB, HC, Ti, Ta, WC, Pt
Connection type	Flange / Thread / Tri-clamp
Nominal pressure	0.6～4.0Mpa（ Special pressure customizable）
Medium Conductivity	≥20μs/cm
Testing scope	1500:1 Flow rate <15m/s

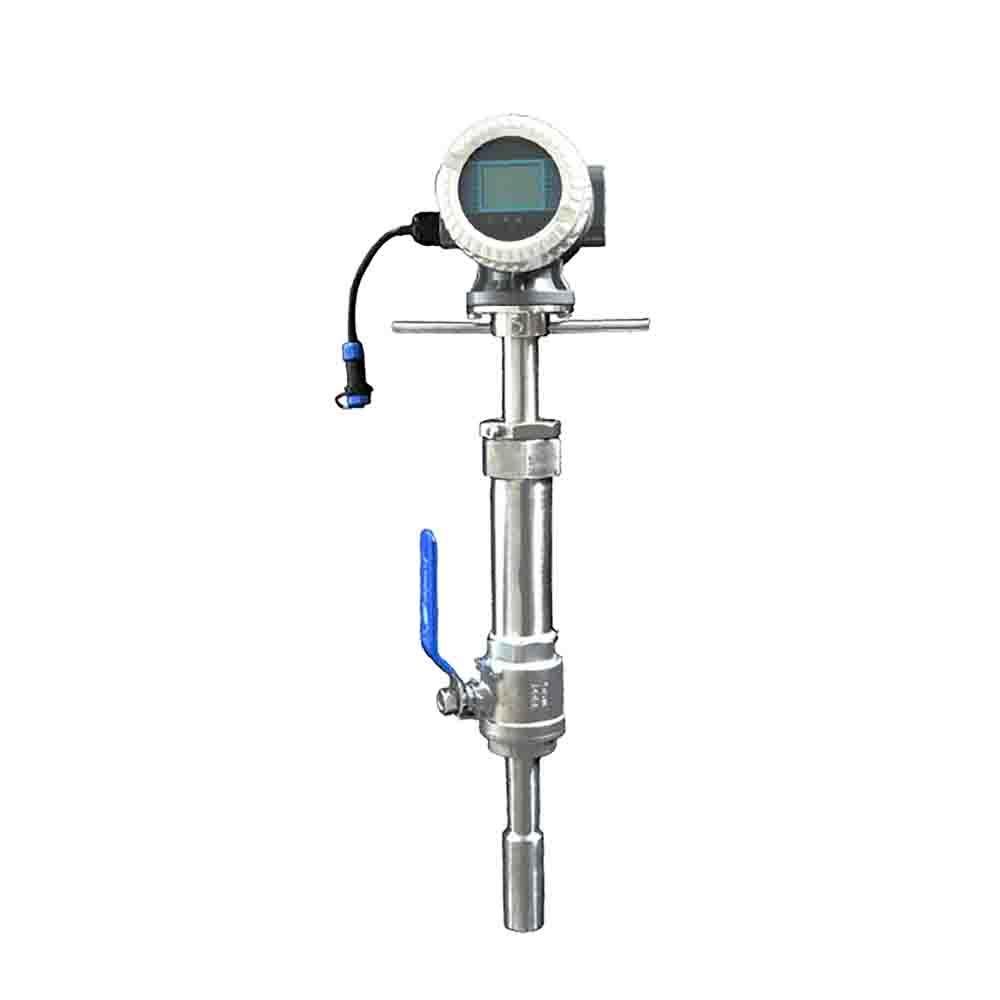

Structural style	Integrated type, Split type, Battery powered type, Insertion type
Protection Class	IP65、IP68 optional
Explosion-Proof	Exdia IICT6
