Temperature transmitter

PT100 Thermal resistance temperature sensor

PT100 Thermal resistance temperature sensor

Strong anti - jamming ability and good long - distance transmission performance
The signal converter is shock-resistant, corrosion-resistant and moisture-proof
The signal converter converts directly to a 4-20mA current output
Can travel long distances (up to 1000 meters)
Product description: temperature transmitter organically integrates the temperature element (thermal resistance or thermocouple) with the signal conversion and amplification unit, which is used to measure the temperature
INQUIRY

Products Description
This series K Type Furnace Thermocouple (Assembly thermocouple) adopts thermocouple or resistance as the temperature measuring element, it is normally matched with display, recording and regulating instrument, to measure the surface temperature (from 0 to 1000 Centigrade) of liquid, steam, gas and solid during various production process.

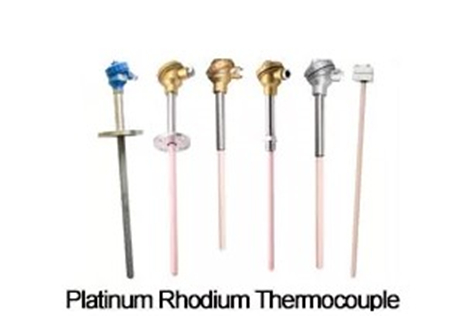

Type S thermocouples are constructed using one wire of 90% Platinum and 10% Rhodium (the positive or
"+" wire) and a second wire of 100% platinum (the negative or "-" wire). Like type R, type S thermocouple
are used up to 1600 °C.
Type B thermocouples use a platinum–rhodium alloy for each conductor. One conductor contains 30%
rhodium while the other conductor contains 6% rhodium. These thermocouples are suited for use at up
to 1800 °C. Type B thermocouples produce the same output at 0 °C and 42 °C, limiting their use below
about 50 °C.

Specification

Name	K Type Thermocouple
Temperature	0-1200C
Model	WRN-122/ WRN2-122/ WRN123/WRN2 -123/ WRN-132/WRN2-132/WRN-133/WRN2-133

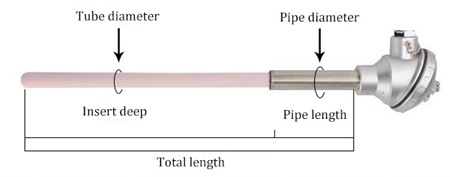

Length	300 * 150 350 * 200 400 * 250 450 * 300 500 * 350 550 * 400 650 * 500 900 * 750 1150 * 1000 1650 * 1500 2150 * 2000
Diameter	12mm/16mm/20mm
Wire	Two Wire System
Material	SS304/ SS321/SS316/INCONEL 600

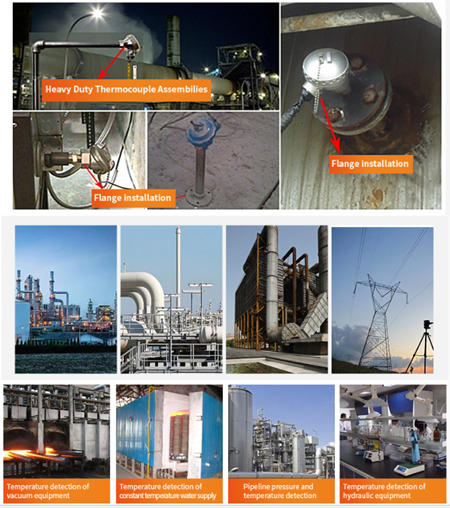

Application	Power Plant / Steel Plant / Cement Plance Ect

Type	Graduation	Protection Tube (mm)				Measuring Range℃
		L	I	D	Material
WRP	S	300	150	φ16	High AL Content Tube	0-1300
		350	200
		400	250
WRR	B	450	300	φ25	Steel jade	0-1600
		550	400
		650	500
WRQ	R	900	750	φ16	High AL Content Tube	0-1200
		1150	1000
		1250	1100	φ20
WRP-100	S	252	252	φ7	High AL Content Tube	0-1200
