Pressure transmitter

Input-type pressure transmitter

With reverse polarity and current limiting protection
Laser resistance temperature compensation
Zero point and range can be adjusted on site
Strong overload and anti-jamming ability, stable performance
Product description: RST2088 economic pressure/level transmitter adopts imported stainless steel diaphragm chip assembly of high precision, high stability, the product through precise structure design, reasonable temperat
INQUIRY

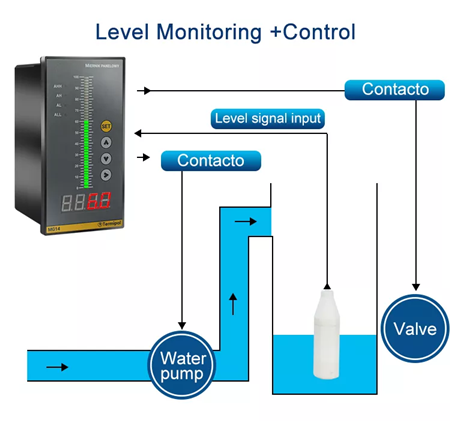

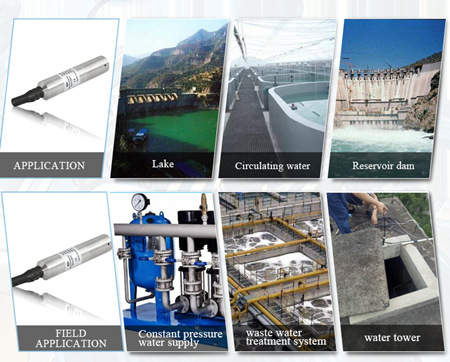

Model 2088 pressure transmitter adopts diffused silicon core as the sensitive element and adopts intelligent digital circuit. The overall performance is stable and reliable, and it can output remotely. Easy to install, suitable for liquid level measurement and control.

Model	RST-2088
Range	0~200m
Output	4-20mA、0-10V DC、0-5V DC、0.5-4.5V DC、RS485
Power	12~36V DC
Ambient temperature	-30~80℃
Relative humidity	0-90%
Medium temperature	-30~80℃
Overload	150%
Pressure form	Gauge
Accuracy class	0.1%, 0.25%, 0.5%
Long-term stability	±0.2%/year
